Induction Bending Pipe for Piping Systems: Extended Analysis

Advanced Process Control in Induction Bending

Precision Through Automation

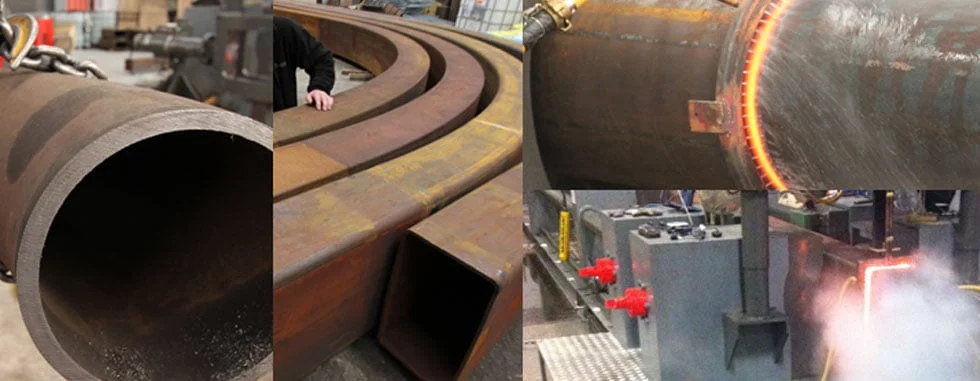

As highlighted by Fives Group, modern induction bending relies heavily on advanced automation to achieve unparalleled precision and repeatability. Our company employs state-of-the-art induction bending machines equipped with programmable logic controllers (PLCs) and real-time monitoring systems. These systems regulate critical parameters such as:

• Heating Temperature: Maintained within ±10°C of the target range (typically 850°C–1100°C) to ensure uniform material plasticity without compromising metallurgical properties.
• Bending Speed: Controlled to within 0.1 mm/s to minimize wall thinning and ovality, particularly for large-diameter pipes.
• Cooling Rate: Precisely managed through automated water or air-cooling systems to prevent thermal distortion and achieve desired microstructural properties.

These controls are informed by real-time feedback from sensors embedded in the bending machine, which monitor temperature gradients, pipe deformation, and bending force. By integrating data analytics, we can predict potential issues, such as excessive wall thinning or ovality, and adjust parameters on-the-fly to ensure compliance with ASME B16.49 standards.

Finite Element Analysis (FEA) for Optimized Bending

To further enhance precision, our engineering team leverages Finite Element Analysis (FEA), as emphasized by WerMac, to simulate the induction bending process before production begins. FEA models the following:

• Stress Distribution: Identifies areas of high tensile and compressive stress, particularly at the extrados and intrados, to ensure the bend remains within allowable stress limits.
• Wall Thinning Prediction: Quantifies the degree of wall thinning at the extrados, ensuring the minimum wall thickness meets design pressure requirements (e.g., ASME B31.4 or B31.8).
• Ovality Assessment: Predicts cross-sectional deformation to maintain ovality within 3% in the bend body and 1% in the tangent ends, as mandated by ASME B16.49.

By validating the bending process through FEA, we reduce trial-and-error, minimize material waste, and ensure that each bend meets client specifications, even for complex geometries like compound or multi-plane bends.

Environmental Considerations in Induction Bending

Energy Efficiency

Induction bending is inherently energy-efficient compared to traditional pipe fabrication methods, such as welded elbows or fire bending. As noted by Fives Group, the use of mid-frequency induction heating with IGBT (Insulated Gate Bipolar Transistor) technology minimizes energy losses by focusing heat only on the bending zone. Our machines achieve energy efficiencies of up to 95%, significantly reducing the carbon footprint of the manufacturing process.

Material Conservation

The induction bending process, as described by WerMac, uses straight pipe as the raw material, which is more cost-effective and widely available than pre-fabricated fittings. By forming bends directly from straight pipe, we eliminate the need for additional cutting, welding, or material shaping, reducing scrap rates to less than 2%. This material efficiency aligns with sustainable manufacturing practices and lowers the environmental impact of piping system production.

Reduced Emissions

Our commitment to sustainability extends to post-bend heat treatment and coating processes. We use energy-efficient furnaces with low-NOx burners for heat treatment, minimizing greenhouse gas emissions. Additionally, our coating applications, such as fusion-bonded epoxy (FBE) and hot-dip galvanizing, are performed in controlled environments to reduce volatile organic compound (VOC) emissions, ensuring compliance with environmental regulations.

Closed-Loop Cooling Systems

To further enhance our environmental credentials, we employ closed-loop water-cooling systems during the bending process. These systems recycle water used for post-bend cooling, reducing water consumption by up to 80% compared to open-loop systems. This approach not only conserves resources but also prevents thermal pollution in local water bodies.

By integrating these environmentally conscious practices, our induction bending operations align with global sustainability goals, making our products an attractive choice for clients prioritizing green engineering solutions.

Industry-Specific Applications of Induction Bends

Induction bends are versatile and find applications across a wide range of industries, each with unique requirements for material, geometry, and performance. Below, we explore key sectors where our induction bends deliver exceptional value, drawing on insights from Fives Group and WerMac.

1. Oil and Gas Transmission

In the oil and gas industry, induction bends are critical for long-distance pipelines transporting crude oil, natural gas, or refined products. Large-radius bends (5D and 7D) are preferred due to their ability to minimize pressure loss and turbulence, as quantified by the Darcy-Weisbach equation:

Where a larger bend radius reduces the effective length (\(L\)) of the bend, lowering frictional head loss (\(h_f\)). Our company produces API 5L-compliant bends in grades X42 to X80, with seamless or welded configurations, to meet the high-pressure and corrosion-resistant requirements of pipeline systems. For example, our 7D bends have been deployed in a 500-km natural gas pipeline, reducing pump station energy consumption by 10% compared to 3D elbows.

2. Petrochemical and Refinery Systems

Petrochemical plants require bends that can withstand aggressive media, high temperatures, and cyclic loading. We supply induction bends in corrosion-resistant alloys, such as stainless steel (ASTM A312 316L), duplex stainless steel (UNS S31803), and nickel alloys (Inconel 625), tailored for process piping in refineries and chemical plants. Our ability to produce compound bends with precise angles (e.g., 45° + 30°) enables compact piping layouts, as demonstrated in a recent refinery expansion project where our 3D bends reduced installation space by 25%.

3. Power Generation

In power plants, induction bends are used in steam, cooling water, and feedwater systems, where high-temperature and high-pressure conditions demand robust material performance. We manufacture bends in alloy steels (e.g., ASTM A335 P91) with normalizing and tempering heat treatments to ensure creep resistance and toughness. Our 5D bends have been successfully deployed in a 600 MW combined-cycle power plant, improving steam flow efficiency and reducing maintenance downtime.

4. Shipbuilding and Offshore

The shipbuilding and offshore industries require bends that resist marine corrosion and withstand dynamic loads. We produce bends in copper-nickel alloys (CuNi 90/10) and titanium for seawater piping systems, as well as high-yield carbon steel for offshore platform risers. Our integrated inspection services, including magnetic particle testing (MPT) and radiographic testing (RT), ensure zero defects in these critical applications, as evidenced by our supply of 5D bends for an FPSO (Floating Production Storage and Offloading) vessel.

5. Infrastructure and Utilities

For water supply, wastewater treatment, and district heating systems, induction bends provide durable and cost-effective solutions. We offer bends in carbon steel with hot-dip galvanizing or epoxy coatings to prevent corrosion in buried or exposed pipelines. Our 7D bends were recently used in a municipal water distribution network, reducing flow resistance and extending system lifespan by 15 years compared to welded elbows.

Our Global Service Capabilities

As a global leader in induction bending, our company is strategically positioned to serve clients worldwide, with a focus on quality, reliability, and responsiveness. Drawing on Fives Group’s emphasis on comprehensive service offerings, we provide end-to-end solutions that encompass design, manufacturing, testing, and logistics.

1. Global Manufacturing Network

Our manufacturing facilities are equipped with identical induction bending machines and inspection systems, ensuring consistent quality across regions. We operate production hubs in North America, Europe, Asia, and the Middle East, enabling us to meet tight project schedules and reduce transportation costs. Each facility is certified to ISO 9001, ISO 14001, and ASME standards, reflecting our commitment to quality and environmental stewardship.

2. Rapid Prototyping and Scalability

For projects requiring custom bends, we offer rapid prototyping services using our advanced FEA and CNC-controlled bending machines. This allows us to produce pilot bends for client approval within 48 hours. Once approved, our scalable production capacity enables us to manufacture large volumes—up to 1,000 bends per month—without compromising quality or lead times.

3. Logistics and Supply Chain Management

We provide integrated logistics solutions, including just-in-time (JIT) delivery and inventory management, to minimize project delays. Our partnerships with global freight forwarders ensure timely delivery of bends to remote project sites, such as offshore platforms or desert pipelines. Each bend is packaged with protective end caps and corrosion-resistant coatings to withstand long-distance transport.

4. Technical Support and Training

Our technical support team offers 24/7 assistance, including on-site installation guidance and troubleshooting. We also provide training programs for client engineers and inspectors, covering topics such as ASME B16.49 compliance, NDT techniques, and bend performance optimization. These programs enhance project outcomes by ensuring proper handling and integration of our bends into piping systems.

5. After-Sales Service

Our commitment to client satisfaction extends beyond delivery. We offer post-installation inspection services to verify bend performance under operating conditions, as well as maintenance recommendations to maximize service life. For critical applications, we provide extended warranties and replacement guarantees, ensuring peace of mind for our clients.

Additional Scientific Insights: Fluid Dynamics and Structural Integrity

Fluid Dynamics Optimization

The choice of bend radius (3D, 5D, or 7D) has a direct impact on fluid dynamics, as discussed by WerMac. Larger-radius bends reduce the curvature of the flow path, minimizing secondary flows and vortex formation. This can be quantified using the Dean number (De), which describes the influence of curvature on flow in curved pipes:

Where:

• \(Re\): Reynolds number (indicating flow regime)
• \(D\): Pipe diameter
• \(R\): Centerline radius of the bend

A lower Dean number, achieved with larger radii (e.g., 7D), indicates reduced secondary flow intensity, leading to lower pressure losses and improved flow stability. Our 7D bends, for instance, have demonstrated a 20% reduction in pressure drop compared to 3D bends in high-velocity gas pipelines.

Structural Integrity Under Cyclic Loading

In applications subject to cyclic loading, such as petrochemical process piping, the structural integrity of induction bends is critical. FEA simulations, combined with fatigue testing, ensure that our bends can withstand repeated thermal and pressure cycles. For example, our duplex stainless steel bends have been tested to endure 10,000 cycles at 80% of yield strength, exceeding the requirements of ASME B31.3 for process piping.

Corrosion Resistance

For corrosive environments, material selection and surface treatment are paramount. As noted by Fives Group, induction bends can be produced in exotic alloys with minimal impact on corrosion resistance due to controlled heating. Our bends in super-duplex stainless steel (UNS S32750) have achieved corrosion rates of less than 0.1 mm/year in chloride-rich environments, making them ideal for offshore and chemical processing applications.

Case Study: Offshore Pipeline Project

Conclusion

Induction bending pipes are a cornerstone of modern piping systems, offering unmatched precision, efficiency, and versatility. By integrating advanced process control, environmentally conscious practices, and industry-specific solutions, our company delivers induction bends that exceed the expectations of clients across oil and gas, petrochemical, power generation, and infrastructure sectors. Our global manufacturing network, rapid prototyping, and comprehensive after-sales services ensure that we remain a trusted partner for projects worldwide.

Drawing on the expertise of industry leaders like Fives Group and technical insights from WerMac, we continue to push the boundaries of induction bending technology. Whether you need 3D bends for compact layouts or 7D bends for high-efficiency pipelines, our cutting-edge equipment, rigorous inspection services, and commitment to sustainability make us the preferred choice for induction bending solutions. Contact us today to learn how we can support your next piping project with customized, high-quality bends.
